VEVOR NEMA Steel Enclosure, 20 x 16 x 10'' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box
Highlights:
1.SKYSHALO Electrical Enclosure: Crafted with precision from 1.5 mm cold-rolled steel, this sturdy construction ensures durability and protection for your equipment in harsh environments. CE and ROHS certified for superior wear resistance.
2.IP66 Waterproof Protection: The foam plastic sealing strip guarantees excellent sealing performance, achieving an IP66 waterproof grade. Keep dirt and water out of the box, making it ideal for various settings like factories, construction sites, malls, residential areas, and more.
3.Reinforced Lock & Hinge: Designed with a high-strength hinged cover, this enclosure ensures the door remains intact even under pressure. The high-quality lock core enhances security for your equipment.
4.Convenient Installation: The junction box features a detachable galvanized mounting backplate, making it easy to install electrical components. The four wall-mounted mounting holes allow for quick and secure fixation on any wall.
5.Exquisite Design: The bottom of the electrical box is thoughtfully designed for easy threading. Grounding screws are pre-installed, and the cutouts are smooth to prevent cable damage.
Details:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1.SKYSHALO Electrical Enclosure: Crafted with precision from 1.5 mm cold-rolled steel, this sturdy construction ensures durability and protection for your equipment in harsh environments. CE and ROHS certified for superior wear resistance.
2.IP66 Waterproof Protection: The foam plastic sealing strip guarantees excellent sealing performance, achieving an IP66 waterproof grade. Keep dirt and water out of the box, making it ideal for various settings like factories, construction sites, malls, residential areas, and more.
3.Reinforced Lock & Hinge: Designed with a high-strength hinged cover, this enclosure ensures the door remains intact even under pressure. The high-quality lock core enhances security for your equipment.
4.Convenient Installation: The junction box features a detachable galvanized mounting backplate, making it easy to install electrical components. The four wall-mounted mounting holes allow for quick and secure fixation on any wall.
5.Exquisite Design: The bottom of the electrical box is thoughtfully designed for easy threading. Grounding screws are pre-installed, and the cutouts are smooth to prevent cable damage.
Details:
Secure your electrical setups with the SKYSHALO Electrical Enclosure Box!
IP66 Grade Security and Ideal for DIY Projects
Crafted from premium carbon steel, the SKYSHALO Electrical Enclosure Box offers top-notch protection for your plug-ins, power cords, and other equipment. Its precise lock design, high-strength hinges, and sealing strips ensure that your circuit remains safeguarded against the elements. With an IP66 waterproof grade, this enclosure box effectively shields your electrical components from liquids and corrosion, providing peace of mind. Experience convenient operation and peace of mind with the SKYSHALO Electrical Enclosure Box, designed with exquisite attention to detail.
- Durable Carbon Steel Construction
- IP66 Waterproof Grade for Optimal Protection
- Reinforced Lock & Hinge for Enhanced Security
- Convenient Operation for Easy Access
- Exquisite Details Design for a Sleek Look
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

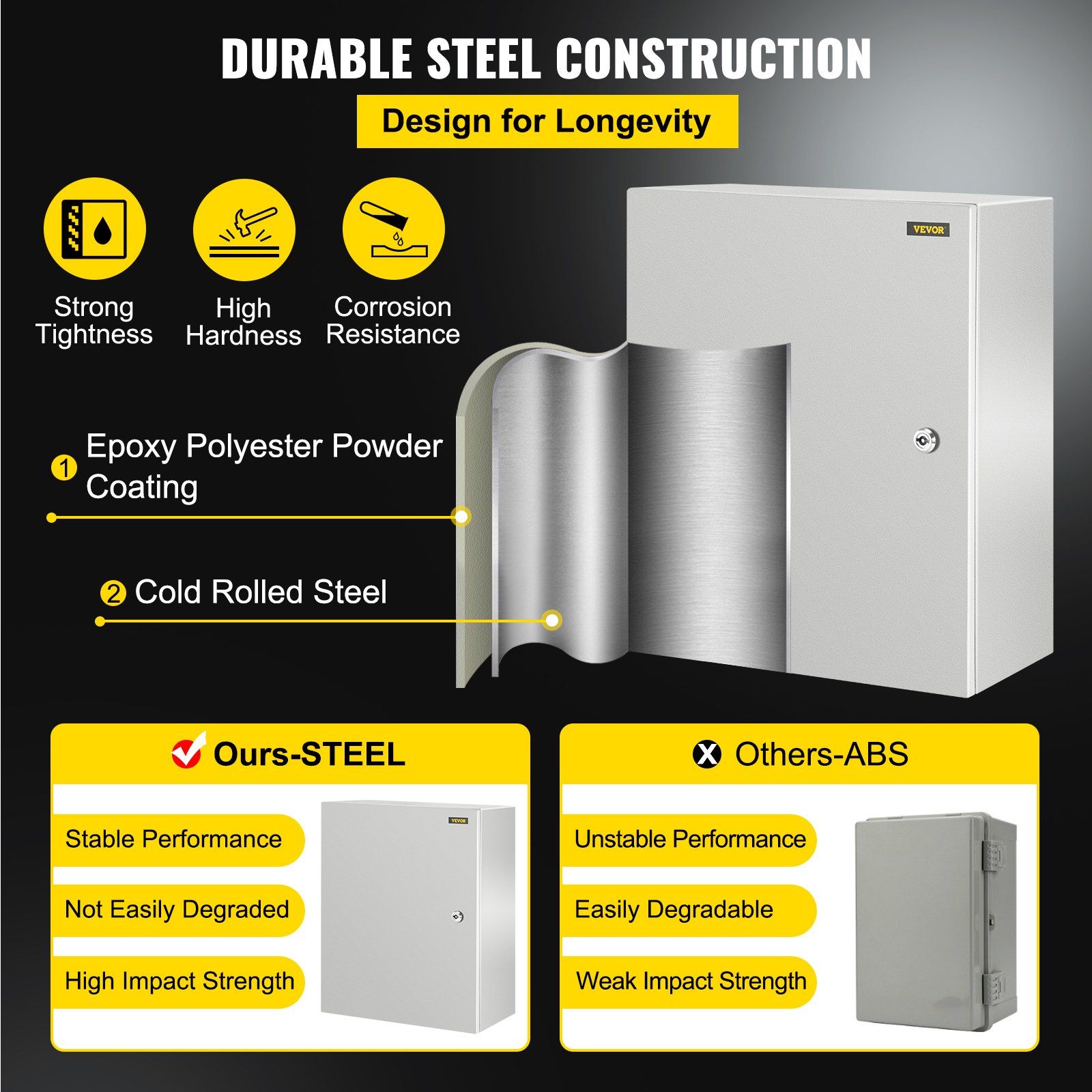

Durable Steel Construction
Crafted from 0.059''/1.5 mm cold-rolled steel, this electrical box offers exceptional toughness, resistance to pressure, and protection against rust. Its shell is coated with epoxy polyester powder, providing excellent mechanical and leveling properties.

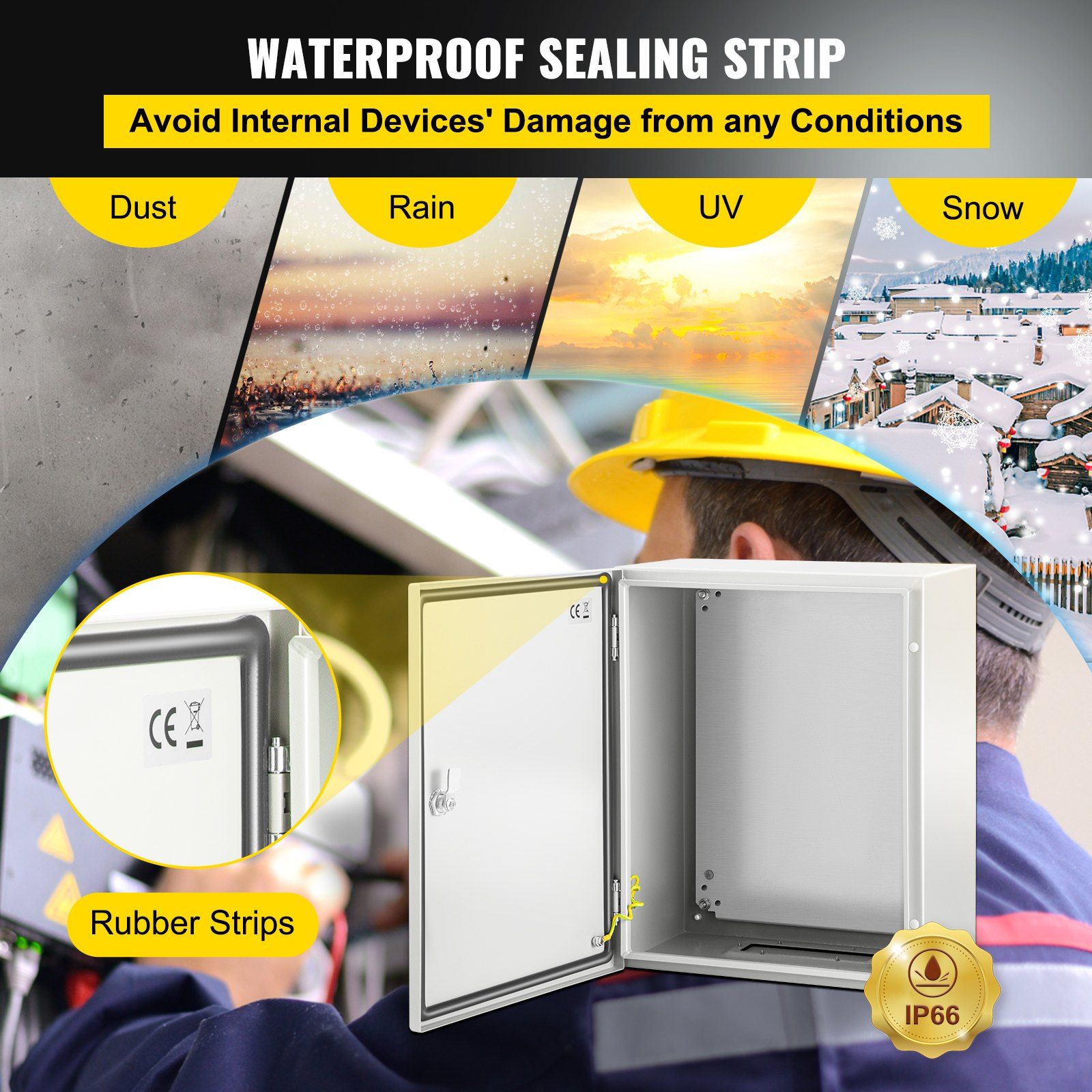

Reliable IP66 Protection
With an IP66 protection level, this electrical box ensures reliable defense against dust, moisture, water, rain, snow, and oil. Keep your internal electrical appliances safe and dry in any environment.

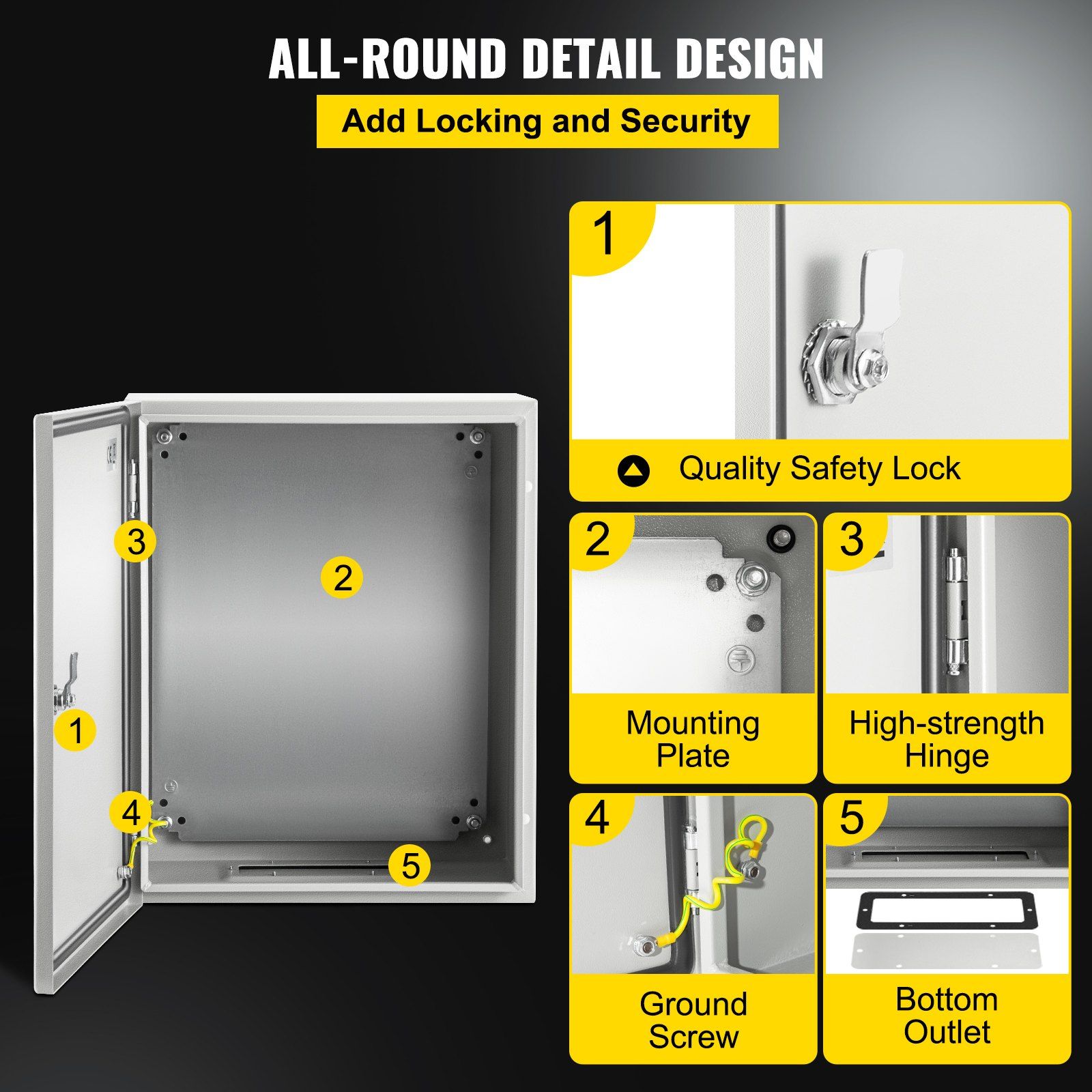

Secure Hinge and Lock Mechanism
Featuring a metal inner lock core, this box prevents damage from excessive force or unauthorized opening. The reinforced hinge guarantees durability even with repeated opening and closing.
Easy Installation and Usage
Effortlessly install PCB boards, terminals, or other electrical components with the detachable 2MM galvanized backplate. The box also includes four mounting holes for convenient wall installation.
User-Friendly Design
The detachable outlet hole at the bottom allows for easy cable entry and exit. The box comes with a pre-installed ground wire and features rounded corners to prevent cable damage.
Versatile Application
Suitable for both indoor and outdoor use, these electrical junction box enclosures effectively protect circuits and prevent corrosion. Ideal for various settings such as factories, construction sites, shopping malls, squares, residential areas, and courtyards.
Specifications
- Model: SPT
- Color: Gray White(RAL7035)
- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 17.7" x 13.8" / 45 x 35 cm
- Outer Dimensions (H x W x D): 20'' x 16'' x 10'' / 50 x 40 x 25 cm
- Inner Dimensions (H x W x D): 19.6'' x 15.6'' x 8.5'' / 49.7 x 39.7 x 21.65 cm
- Net Weight: 32.63 lbs / 14.8 kg
- Certification: CE / ROHS Approved

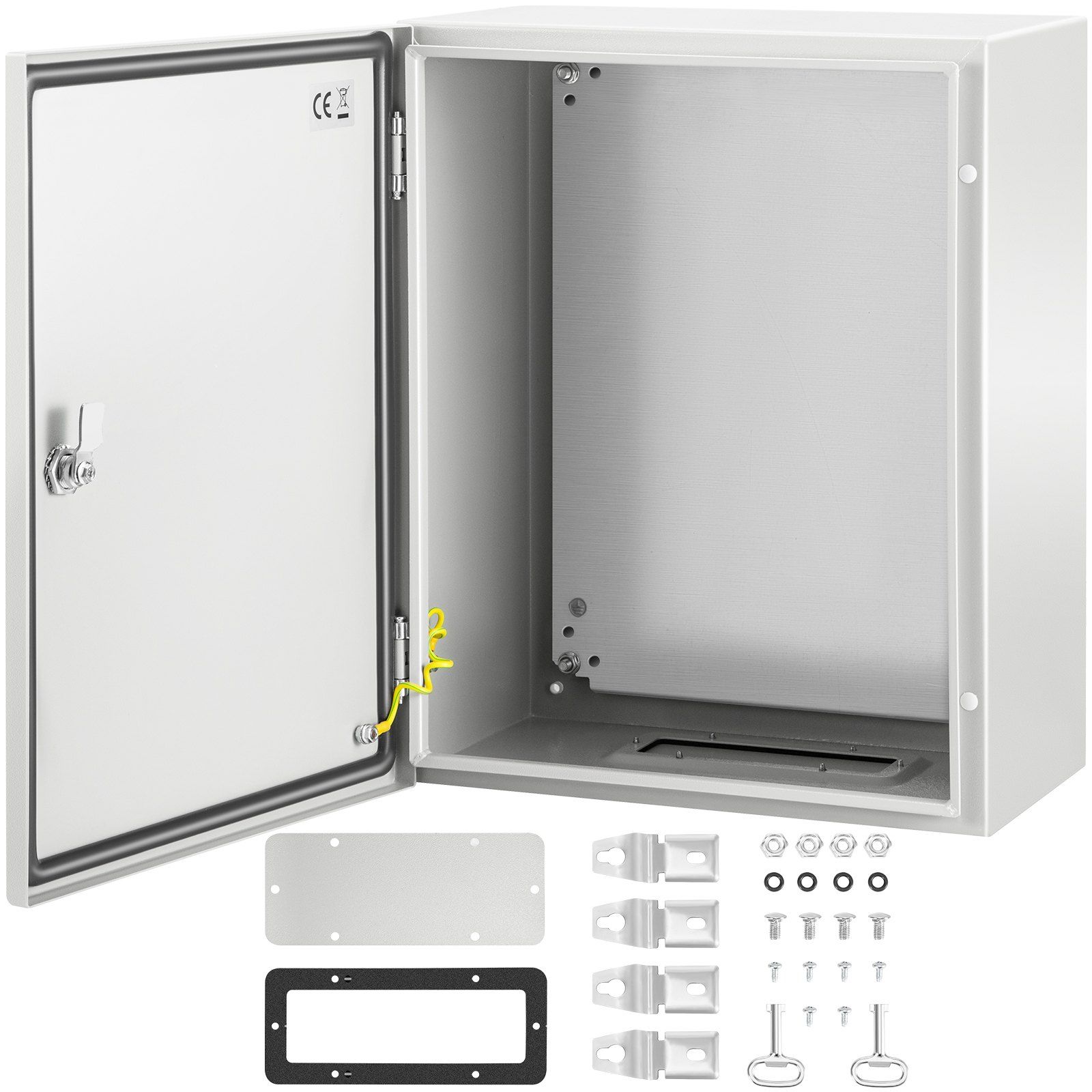

Package Content
- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate(The mounting plate has been assembled in the box)
- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
